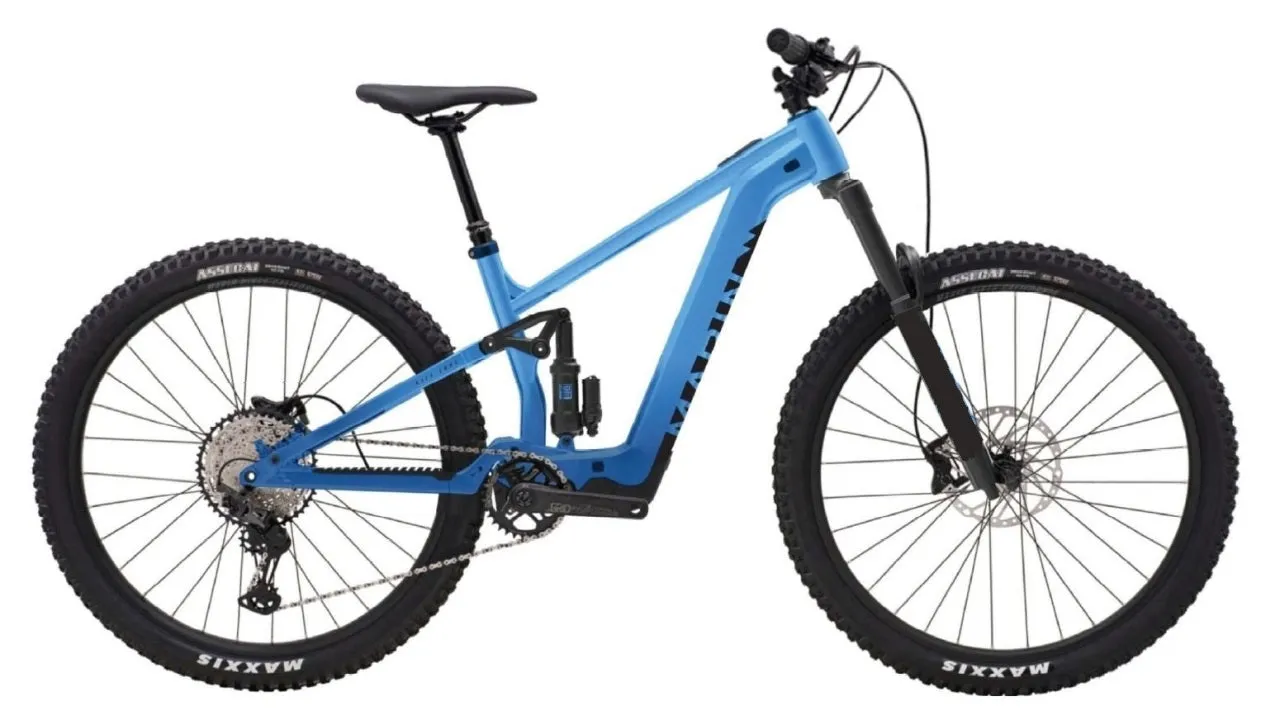

The Marin Alpine Trail E puts the fun and freedom of eMTB at a super-friendly price, because why should only the richest of riders get the good times?
We’ve created a big-mountain-capable eMTB that’s probably the best value eMTB on the planet and packed in the awesome Shimano EP6 drive unit, X-Fusion suspension, 10-speed Shimano drivetrain, Vee Tire Co. rubber, plenty of kick-ass Marin components and a long-lasting internal 504Wh battery. Rounding out all this goodness are powerful 4-piston TRP brakes with 203mm rotors.
Specifications
| 01. FRAME | All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| 02. FRONT SUSPENSION | Marzocchi Bomber Zl 140mm Travel, 29, 110xl 5 Kabolt Thru Axle, 44mm Offset |
| 03. REAR SUSPENSION | All New Marzocchi Bomber Air Shock |
| 04. RIM | Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible |
| 05. HUB REAR | Shimano FHTCS00, 148x12 Thru Axle, Mircospline, 32H, Centerlock |
| 06. HUB FRONT | Shimano HB-TCS00, 110x10 Thru Axle, 32H, Centerlock |
| 07. SPOKES | 14g Black Stainless Steel |
| 08. TIRES | Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO , Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO |
| 09. DERAILLEUR REAR | Shimano CUES RD-U6000 GS, 10-Speed |
| 10. DERAILLEUR FRONT | 0 |
| 11. SHIFT LEVER | Shimano CUES SL-U6000-10R,10-Speed |
| 12. CRANKSET | e*thirteen e*spec Plus, 160mm Length, 34T |
| 13. MOTOR | Bosch Performance Line SX, 600W, SSNm torque |
| 14. CHAIN | Shimano LG500 |
| 15. CASSETTE | Shimano CS-LG300-10, 11-48T |
| 16. BRAKES FRONT | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
| 17. BRAKES REAR | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
| 18. BRAKE LEVERS | TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible |
| 19. HANDLEBAR | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5° Up, 9° Back |
| 20. STEM | Marin 3D Forged Alloy, 35mm |
| 21. GRIPS | Marin Grizzly Lock On |
| 22. HEADSET | FSA Custom Headset, Adjustable HTA Design |
| 23. SEATPOST | TranzX, YSl34 QL, Plastic lx Remote, Size S 150mm Travel, Size Mand L 170mm Travel, Size XL 200mm Travel, 34.9mm |
| 24. SADDLE | Marin Speed Concept |
| 25. PEDALS | Marin MTB Plastic |
| 26. BATTERY | Bosch 400Wh Internal |
| 27. DISPLAY | Bosch BRC3100 Systems Controller |
| 28. SWITCH | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| 29. EXTRAS | e*thirteen e*Spec Chainguide |
| 30. EXTRAS | Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
